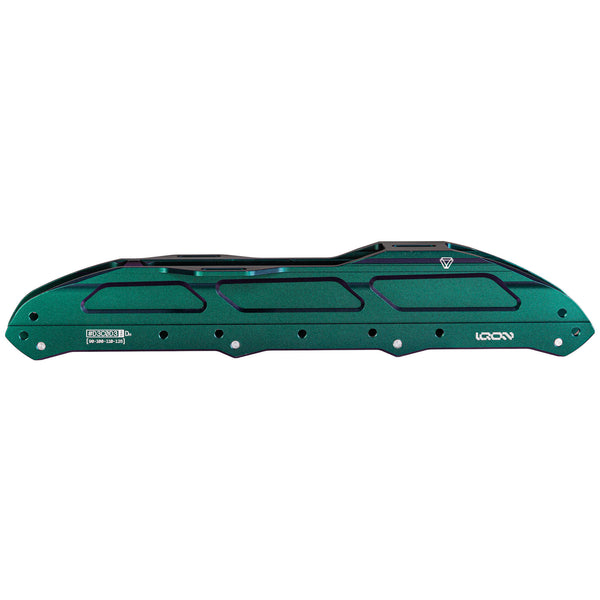

TR Decode DH Frame
IQON - Downhill Inline Frames

20520 | Green | Pair
199,99 €

IQON TR Decode DH Frame – Versatile Downhill Inline Skate Frame for Racing, Slides & Maximum Speed

Know more specs
Outlet Shop: in stock not available
Add to сart
universal cross
Directly add to cart

By clicking on "Preorder" you will purchase directly from us.

DESCRIPTION

IQON DECODE DH Frame
In inline downhill everything changes depending on the track: some tracks require more slides, more turns, others more lines and top speed. So there’s no single ideal frame.
We've optimized and combined the four most popular setups into a single versatile frame. The DECODE DH Trinity frame is truly the Swiss Army knife of downhill inline skating.
Versatile 4-in-1 setups:

1. 5x90mm: The classic downhill setup. Easy slides, quick turns, low and maximum freeride fun. The only Trinity 5x90 frame available.
2. 125-100-100-125mm: New concept and tested as the perfect racing balance on most tracks. Long, extremely low profile (as low as a traditional trinity 4x100), offering outstanding momentum.
3. 125-110-110-125mm: Powerslide's famous DH350 configuration, slightly longer, designed for larger feet and unbeatable top speeds.
4. 4x110mm: Also, a very popular setup. With a gap between 1st and 2nd wheels to improve grip. Ideal as an alternative setup using identical wheels.

Easy & Quick Wheel Changes:
Wheels are mounted from the inside of the frame, allowing rapid wheel changes without removing skates. Critical for lightning-fast pit stops during races. With this frame you will have no problem using any leftover downhill wheels.

Enhanced Stability & Customization:
All setups are slightly shifted backward, offering better stability in tuck positions and smoother slide initiation. However, you have full freedom to adjust the frame position thanks to elongated mounting rails, longer than standard Trinity frames.

Choose DECODE DH dominate the downhill and never compromise on speed or control.

DETAILS

Frame:

AL 7003 aircraft; TRINITY 3-point mounting; 14.9" / 378mm; 5x90mm, 4x110mm, 2x125mm/2x110mm, 2x125mm/2x100mm (check configuration file)

DETAILS

universal cross
Details icon
Sizes:
14.9" / 378mm
Details icon
Frame Material:
AL 7003 aircraft
Details icon
Frame Mounting Standard:
TRINITY 3-point mounting
Details icon
Max. Wheel Size:
125mm, 110mm, 90mm (check configuration file)
Details icon
Frame Wheel Base (Inch / MM):
14.9" / 378mm
Details icon
Frame Setup:
5x90mm, 4x110mm, 2x125mm/2x110mm, 2x125mm/2x100mm (check configuration file)
Details icon
Standing Height Front / Rear in MM:
64mm / 75mm
Details icon
Frame Axles:
Single axle AL 7075, 8mm, Torx T25, L=35mm
Details icon
Frame Spacer:
None
Details icon
Adjustable Side to Side:
true
Details icon
Adjustable Front to Back:
true
Details icon
Frame Construction:
Single void
Details icon
Frame Manufacturing Process:
Extruded and CNC machining
Details icon
Included Accessories:
AL spacer, 6 washers 1mm thick, 6 screws 10mm, 6 screws 12mm, 6 screws 15mm, 1 IQON tool Torx T25
Details icon
Ice blade information:
No compatibility of Sabres ice blades for this frame model
Details icon
Ice blade compatibility:

TEST & CERTIFICATION

Warranty
2 Years
